Vibrocompaction Design in Austin TX: Deep Ground Improvement for Central Texas Soils

Austin's subsurface is a geological dialogue between ancient limestone and the friable sands and clays of the Colorado River floodplain. The city, built where the Edwards Plateau meets the Blackland Prairie, consistently presents engineers with loose, unconsolidated alluvial deposits and notoriously variable urban fill, often right above pinnacled bedrock. In our experience, shallow foundations in these conditions are a gamble without deep densification. The vibrocompaction design we develop targets these specific Central Texas heterogeneities, using depth-controlled vibratory probes to rearrange granular particles into a denser state, increasing relative density and mitigating settlement before a yard of concrete is ever poured. For preliminary site characterization, many of our clients also commission a CPT test to map the continuous stratigraphy and identify the exact lenses requiring treatment before we finalize the probe grid and energy parameters.

Achieving 70% relative density below Austin's perched water tables requires adapting the vibrocompaction grid to the pinnacled rock geometry that defines the Hill Country subsurface.

Methodology and scope

One complication we see repeatedly in East Austin and along the Onion Creek corridor is the presence of irregular limestone bedrock at depths varying from 8 to 35 feet, creating a stiff boundary that reflects vibratory energy and complicates compaction near the interface. A standardized grid pattern rarely works here. Our designs rely on variable spacing and incremental lift densification, adjusting the amperage and dwell time based on real-time data from the onboard data acquisition system. We specify the backfill gradation to match the native soil, typically a clean crushed limestone aggregate that interlocks with the densified matrix. In zones with high silt content, where vibrocompaction alone may not achieve the target SPT N-values, we often integrate a stone columns approach to create stiff composite ground that drains and reinforces the treated volume simultaneously, ensuring the improved mass meets the bearing capacity and settlement criteria dictated by the structural engineer.

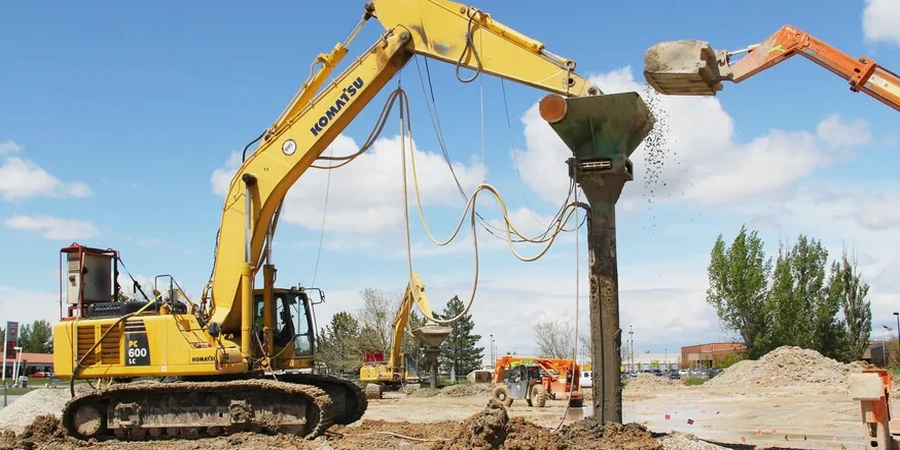

Vibrocompaction Design in Austin TX: Deep Ground Improvement for Central Texas Soils

Local considerations

With a metro population exceeding 2.4 million, Austin's growth has pushed development onto reclaimed quarries and alluvial terraces that hold decades of undocumented fill. The 1848 Balcones Fault earthquake, though rare, reminds us that Central Texas is not seismically inert, and loose saturated sands under structures with high occupancy categories demand a densification strategy that addresses both static settlement and cyclic mobility. Skipping vibrocompaction in these soils risks differential settlement exceeding tolerable limits within the first five years of service, particularly under slab-on-grade foundations for tilt-wall commercial buildings. The cost of post-construction releveling or deep foundation retrofitting in these neighborhoods far exceeds the investment in a properly designed ground improvement program executed before the slab is poured in the first place.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering1.org

Regulatory framework

The design references include ASTM D4253/D4254 for maximum and minimum index density, FHWA-NHI-16-072 for ground improvement methods, and ASCE 7-22 for seismic site class determination.

Other technical services

01

Field Trial and Performance Specification

We design and supervise a pre-production test section to calibrate probe spacing, duration, and backfill quantity against target CPT tip resistance or SPT blow count criteria, providing the quality control benchmark for full-scale production.

02

3D Grid Optimization and Energy Monitoring

Using a triangular grid pattern adjusted for the limestone float, we define depth steps and real-time energy parameters, including amperage and hold time, recorded by the vibroflot's onboard computer to ensure uniform densification across the entire treatment zone.

03

Post-Treatment Verification and Reporting

We execute a rigorous quality assurance program consisting of post-treatment CPT soundings at grid centroids, comparing the pre- and post-improvement tip resistance profiles to certify that the design relative density and settlement reduction targets have been achieved.

Typical parameters

ParameterTypical value
Target Relative Density (Dr)≥ 70% (ASTM D4253/D4254)
Typical Treatment Depth15 to 40 ft (probe-dependent)
Probe Spacing (Triangular Grid)5 to 12 ft on center
Backfill MaterialClean crushed limestone (gradation per project spec)
Verification MethodPost-treatment SPT/CPT (ASTM D1586/D5778)
Design ReferenceFHWA-NHI-16-072, ASCE 7-22

Frequently asked questions

How does the limestone bedrock in Austin affect vibrocompaction design?

The pinnacled limestone common in the Hill Country creates a rigid boundary that reflects vibratory energy upward. We adjust the probe depth to stop about two feet above the rock and reduce the vibratory amplitude in that terminal lift to avoid equipment damage and ensure effective densification just above the interface without fracturing the probe.

What is the typical cost range for a vibrocompaction design package in the Austin area?
Can vibrocompaction eliminate the risk of settlement in Austin's alluvial soils?

While it dramatically reduces settlement potential by densifying the granular matrix, no method completely eliminates it. Our designs target a post-treatment relative density above 70%, which in practice reduces long-term settlement under static loads to within acceptable structural tolerances, provided the vertical stress bulb does not extend into untreated deeper strata.

Do you need a pre-treatment CPT before designing a vibrocompaction program?

Absolutely. A pre-treatment CPT is essential to map the continuous stratigraphy, identify the exact lenses of loose sand or gravel, and establish the baseline tip resistance and sleeve friction. We use this data to determine the treatment depth, probe spacing, and energy input required for each specific layer.
