Geotechnical Design of Deep Excavations in Austin, TX

Q: What is the typical cost range for geotechnical design of a deep excavation in Austin?

040, depending on the complexity of the shoring system, depth of cut, and whether dewatering design and karst mitigation measures are required. A simple single-level basement in competent chalk falls at the lower end, while a multi-level excavation near Lady Bird Lake with tieback design and TCEQ coordination sits at the higher end.

The Edwards Limestone underlying much of Austin creates a false sense of security until a contractor hits a karst void or the Glen Rose formation's interbedded marls 15 feet down. Designing a deep excavation here means navigating a city split between hard rock on the west side and expansive Taylor Clay toward the eastern floodplain. The water table sits shallow along the Colorado River corridor, complicating any cut deeper than a single basement level. Our technical team applies site-specific test pits to map rockhead continuity before committing to shoring geometry, and integrates slope stability analysis whenever a temporary bench cut must stand through a wet spring season.

Deep excavation design in Austin requires accounting for the stiffness contrast between weathered limestone and intact rock, a condition that modifies the earth pressure distribution assumed in conventional apparent pressure diagrams.

Methodology and scope

A common miscalculation in Austin is assuming that a soldier pile and lagging wall designed for Dallas chalk will perform identically in weathered Austin Chalk with solution-enlarged joints. The difference in lateral deflection can exceed three inches if the design ignores the fracture permeability that feeds groundwater into the excavation face. We apply finite element modeling calibrated with CPT test data to capture soil-to-rock transition stiffness rather than relying on generic SPT correlations. A correct design sequence starts with piezometer installation to map the perched water table, moves to laboratory triaxial testing of recovered rock core for modulus values, and finishes with a construction-stage analysis that accounts for the thermal stress differential between the exposed limestone face and the tieback bond zone during an August heat wave.

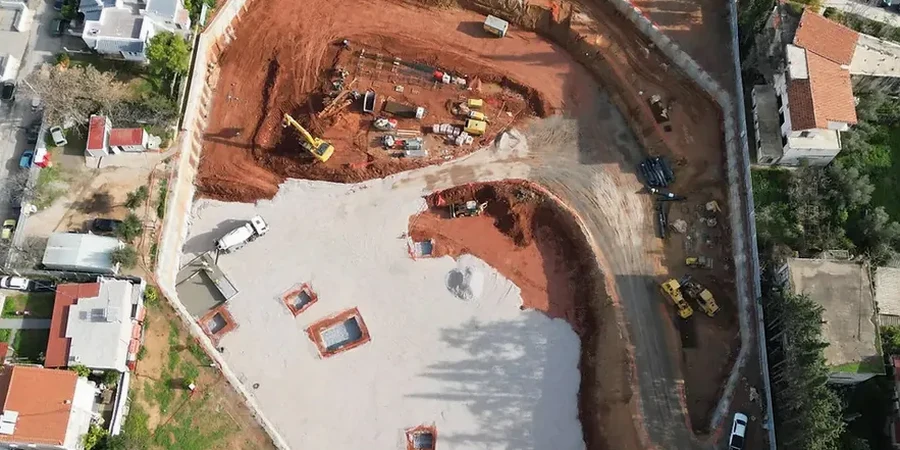

Geotechnical Design of Deep Excavations in Austin, TX

Local considerations

West Lake Hills excavations behave differently than those in the Mueller redevelopment area. West Lake sits on thin soil over karstic limestone where a tieback drill can lose grout into solution cavities and never achieve bond, while Mueller's clayey soils require careful evaluation of shrink-swell pressure against the wall after construction. The Barton Springs recharge zone adds another layer of scrutiny: any excavation deeper than 20 feet within the contributing zone triggers a TCEQ-level water quality review that affects dewatering design and chemical grout selection. Ignoring the hydrogeologic boundary between the Edwards and the Trinity aquifer in a site investigation means the difference between a dry excavation and a continuous 50 gpm inflow that destabilizes the subgrade. Our grouting design for pre-excavation curtain installation addresses these karst and fracture flow paths directly.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering1.org

Explanatory video

Regulatory framework

FHWA Geotechnical Engineering Circular No. 4: Ground Anchors and Anchored Systems (FHWA-SA-99-015), ASCE 7-22: Minimum Design Loads for Buildings and Other Structures, Section 12.13, ASTM D1586-18: Standard Test Method for Standard Penetration Test (SPT) and Split-Barrel Sampling of Soils, AASHTO LRFD Bridge Design Specifications, 10th Edition, Section 11: Abutments, Piers, and Walls, IBC 2024 Chapter 18: Soils and Foundations, Texas Commission on Environmental Quality (TCEQ) Edwards Aquifer Protection Program requirements.

Other technical services

Shoring System Design

Complete design of soldier pile and lagging, secant pile, or diaphragm walls with staged excavation analysis. Includes tieback spacing optimization, waler sizing, and corrosion protection specification for the moderately aggressive Austin soil environment.

Dewatering and Cutoff Design

Hydrogeologic analysis for deep cuts below the water table in Colorado River alluvium or perched water within weathered limestone. Design of wellpoint systems, deep wells, or grout curtain cutoff walls to meet TCEQ discharge requirements.

Rock Slope and Bench Stability

Kinematic stability analysis of temporary rock cuts in Austin Chalk using stereonet projections and limit equilibrium methods. Identification of wedge failure potential along joint sets oriented parallel to the excavation face.

Instrumentation and Monitoring Plans

Specification of inclinometer, piezometer, and optical survey targets to track lateral deflection and groundwater response during excavation. Threshold values and contingency triggers defined per FHWA and CFI guidelines for adjacent structure protection.

Typical parameters

Parameter	Typical value
Maximum excavation depth analyzed	Up to 80 ft below grade
Typical retained soil types	Taylor Clay, Austin Chalk, Terrace Deposits
Design water table assumption	Variable: 8 to 28 ft bgs per TWDB records
Shoring system types evaluated	Soldier pile, secant pile, soil nail, diaphragm wall
Lateral earth pressure model	FHWA apparent pressure, modified for rock
Seismic design parameter (SDS)	0.10g to 0.20g per ASCE 7-22 for Austin
Corrosion zone classification	Moderate: pH 6.8 to 7.2 typical for Edwards aquifer recharge
Cracked zone influence depth	3 to 10 ft from excavated face in weathered chalk

Frequently asked questions

What is the typical cost range for geotechnical design of a deep excavation in Austin?

How does the Edwards Aquifer affect deep excavation design in Austin?

Any excavation within the Edwards Aquifer recharge or contributing zone must comply with TCEQ Edwards Aquifer Protection Program rules. This means dewatering discharge requires a water quality permit, grout materials must be approved for aquifer contact, and a geologic assessment must demonstrate that karst features have been adequately characterized to prevent contaminant migration through solution channels.

What seismic loads apply to temporary shoring walls in Central Texas?

Per ASCE 7-22, Austin falls within a low-to-moderate seismic hazard zone with SDS values typically between 0.10g and 0.20g for Site Class C. While seismic earth pressure increments are modest, they must still be included in the design per IBC Section 1803. The controlling load case for Austin excavations is usually the long-term at-rest pressure condition rather than the seismic increment.

How do you address the risk of karst voids encountered during excavation in Austin?

Pre-construction karst assessment combines review of Texas Bureau of Economic Geology karst maps, electrical resistivity profiling, and probe drilling from the planned excavation bench elevation. If a void is intercepted, the design includes a contingency protocol: void mapping with lidar or manual survey, backfill grouting with low-mobility grout to refusal, and a revised shoring design to bridge the softened zone around the feature.
